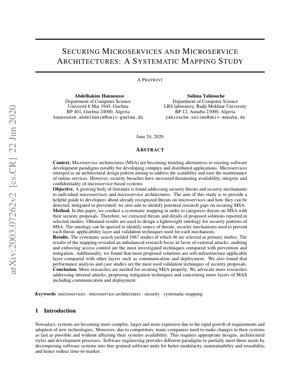

Securing Microservices and Microservice Architectures: A Systematic Mapping Study

1. Introduction

Microservice Architectures (MSA) have emerged as a dominant paradigm for building scalable, maintainable, and distributed software systems. By decomposing applications into fine-grained, independently deployable services, MSA offers significant advantages in agility and resilience. However, this architectural shift introduces profound security challenges. The proliferation of entry points, increased network traffic, and the need for inter-service trust in heterogeneous environments amplify the attack surface. This systematic mapping study, conducted by Hannousse and Yahiouche, aims to categorize the security threats targeting MSA, analyze proposed countermeasures, and identify critical research gaps to guide future work in securing these complex systems.

2. Research Methodology

The study employs a rigorous systematic mapping methodology to provide a comprehensive overview of the research landscape.

3. Results and Analysis

The analysis of the 46 primary studies revealed several key trends and imbalances in current research.

4. Lightweight Security Ontology

A key contribution of this study is the design of a lightweight ontology for MSA security patterns. This ontology structures knowledge by linking:

• Threat Sources (Internal/External, Actor Type)
• Security Mechanisms (Prevention, Detection, Mitigation)
• Applicability Layer (Infrastructure, Communication, Service, Deployment)
• Validation Techniques (Case Study, Formal Proof, Performance Analysis)

This ontology serves as a queryable knowledge base, allowing developers and architects to identify relevant security patterns for specific threat scenarios.

5. Research Gaps and Future Directions

The study concludes by advocating for focused research in under-explored areas:

• Internal Attack Vectors: Developing models and mechanisms to detect and contain threats originating from within the service mesh.
• Mitigation & Resilience: Shifting focus from pure prevention to strategies that ensure system survival and rapid recovery during an ongoing attack.
• Holistic Layer Security: Expanding security solutions beyond the soft-infrastructure layer to encompass secure communication protocols and hardened deployment platforms.
• Automated Security: Leveraging AI/ML for anomaly detection and automated response, akin to advancements seen in other security domains.

6. Core Insight & Analyst Perspective

Core Insight: The current state of microservices security research is dangerously myopic. It's obsessively fortifying the front gate (external APIs) while leaving the palace halls (internal service-to-service communication) and the royal guard (deployment platform) under-protected. The systematic mapping by Hannousse and Yahiouche exposes a field playing checkers when it needs to be playing 4D chess against sophisticated adversaries.

Logical Flow: The study's methodology is sound—filtering 1067 papers to 46 relevant ones paints a credible landscape. The logic is inexorable: microservices' core value (distribution, independence) is its core vulnerability. Each new service is a new attack vector, a new trust relationship to manage. The research community's response has been predictably linear: apply monolithic-era tools (API gateways, IAM) at the edges. This is akin to securing a swarm of bees by putting a lock on the hive entrance, ignoring the fact that each bee operates independently across miles of open field.

Strengths & Flaws: The paper's strength is its brutal honesty in mapping the imbalance. Its proposed ontology is a pragmatic step towards a more systematic defense. However, the flaw is in the scope of the underlying literature itself—it reflects a field still in its infancy. Where is the deep integration with Zero-Trust principles, as championed by NIST (SP 800-207)? Where is the rigorous formal modeling of distributed trust, comparable to work in blockchain consensus algorithms? The solutions analyzed are largely bolt-ons, not architectural re-thinks. Contrast this with the paradigm-shifting approach of Google's BeyondCorp, which moved security from the network perimeter to individual devices and users—a model microservices desperately need to internalize.

Actionable Insights: For CTOs and architects, this study is a wake-up call. Stop treating service mesh security as an afterthought. Prioritize service identity over network location. Invest in mutual TLS (mTLS) and fine-grained, attribute-based access control (ABAC) for all service communications. Demand that your container orchestration (K8s, Nomad) has security baked in, not bolted on. The future isn't in bigger gateways; it's in smarter, cryptographically verifiable handshakes between every single service instance. The research gap is a chasm—bridge it with architecture, not just tools.

7. Technical Details & Mathematical Framework

To move beyond qualitative analysis, securing MSA requires formal models. A foundational concept is modeling the system as a dynamic graph $G(t) = (V(t), E(t))$, where:

• $V(t)$ represents the set of microservice instances at time $t$, each with properties like identity $id_v$, trust score $\tau_v(t)$, and security posture $s_v$.
• $E(t)$ represents allowed communications, each edge $e_{uv}$ having a required trust threshold $\theta_{uv}$ and a security context (e.g., encryption protocol).

A communication request from $u$ to $v$ at time $t$ is granted only if the trust predicate holds: $$P_{comm}(u,v,t) := (\tau_u(t) \geq \theta_{uv}) \land (\tau_v(t) \geq \theta_{vu}) \land \text{AuthZ}(u,v, action)$$ Here, $\tau(t)$ is a dynamic function incorporating behavior monitoring, akin to reputation systems studied in distributed networks. The security challenge is maintaining and verifying this predicate in a scalable, decentralized manner without a single point of failure—a problem intersecting with Byzantine Fault Tolerance research.

8. Experimental Results & Validation

The mapping study found that performance analysis (65% of studies) and case studies (58%) were the dominant validation techniques for proposed security mechanisms. This is both a strength and a weakness.

Chart Interpretation (Implied): A hypothetical bar chart derived from the study would show a tall bar for "Performance Overhead Measurement" and a slightly shorter one for "Proof-of-Concept Case Study." Bars for "Formal Verification," "Large-Scale Simulation," and "Real-World Deployment Data" would be significantly shorter. This reveals a validation gap. While proving a mechanism doesn't cripple latency is necessary, it's insufficient. The lack of formal verification leaves subtle logic flaws undiscovered. The scarcity of large-scale simulation or real-world data, as seen in robust infrastructure studies from companies like Netflix or Google, means we don't understand how these mechanisms fail under chaotic, real production loads or coordinated attacks.

The results underscore a maturity issue: the field is still proving feasibility, not evaluating operational efficacy at scale.

9. Analysis Framework: Case Study

Scenario: E-commerce Platform Migration to MSA.
Threat: A compromised "Product Catalog" microservice (internal threat) starts sending malformed data to the "Order Processing" service, causing logical errors and order failures.

Applying the Study's Ontology:

1. Query Threat: Source=Internal; Actor=Compromised Service; Target=Data Integrity.
2. Identify Gaps (Per Study Findings): Most literature focuses on external API attacks. Few mechanisms address detection of malicious behavior from a legitimate service.
3. Proposed Mechanism: Implement a behavioral attestation layer. Each service response includes a lightweight, cryptographically verifiable proof that its internal logic was executed correctly on valid input, using techniques inspired by trusted computing or zero-knowledge proofs. The receiving service verifies this attestation before processing.
4. Layer: This applies to the Communication Layer, an under-studied area.
5. Validation: Requires a mix of formal modeling (to prove the attestation scheme's soundness) and performance analysis (to measure the overhead of proof generation/verification).

10. Future Applications & Industry Outlook

The convergence of MSA with other technological trends will define the next frontier of security:

• AI-Native Microservices: As AI models become deployable as microservices (e.g., for fraud detection, personalization), securing them involves new threats: model poisoning, inference attacks, and prompt injection. Security mechanisms must evolve to protect both the service and the intellectual property (the model).
• Confidential Computing: Technologies like Intel SGX or AMD SEV allow code and data to be executed in hardware-enforced trusted execution environments (TEEs). Future MSA can leverage this to create "enclaved microservices," where even the cloud provider cannot inspect the service state, dramatically reducing the attack surface from insiders and compromised infrastructure.
• Service Mesh Evolution: Current service meshes (Istio, Linkerd) provide mTLS and basic policy. The future lies in intelligent meshes that use continuous authentication, real-time risk scoring (based on the $\tau(t)$ model), and automated policy adaptation to contain breaches—essentially, an immune system for the application.
• Regulatory-Driven Security: Standards like the EU's Digital Operational Resilience Act (DORA) will force financial and critical infrastructure sectors to adopt formally verifiable security postures for their distributed systems, accelerating research into provably secure communication patterns and deployment blueprints for MSA.

The future is not just about securing microservices, but about building inherently secure, self-healing, and resilient distributed systems from the ground up.

11. References

1. Hannousse, A., & Yahiouche, S. (2020). Securing Microservices and Microservice Architectures: A Systematic Mapping Study. arXiv preprint arXiv:2003.07262.
2. Newman, S. (2015). Building Microservices. O'Reilly Media.
3. Nadareishvili, I., et al. (2016). Microservice Architecture: Aligning Principles, Practices, and Culture. O'Reilly Media.
4. National Institute of Standards and Technology (NIST). (2020). Zero Trust Architecture (SP 800-207).
5. Google. (2014). BeyondCorp: A New Approach to Enterprise Security. [Google Research Publication].
6. Lamport, L., Shostak, R., & Pease, M. (1982). The Byzantine Generals Problem. ACM Transactions on Programming Languages and Systems (TOPLAS).
7. European Union. (2022). Digital Operational Resilience Act (DORA).
