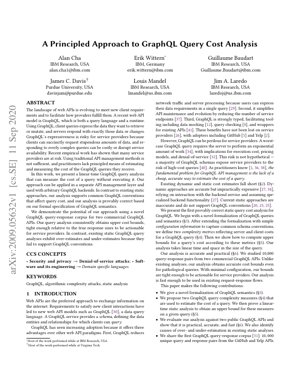

A Principled Approach to GraphQL Query Cost Analysis

1. Introduction

GraphQL has revolutionized web API design by allowing clients to specify precisely the data they need. However, this expressiveness introduces significant risks for service providers. A single, poorly formed query can request an exponential amount of data, leading to excessive server load, increased costs, and potential Denial-of-Service (DoS) vulnerabilities. Empirical studies show many GraphQL implementations are at risk. This paper addresses the critical gap: the lack of a principled, accurate, and efficient method to estimate query cost before execution.

2. Background & Related Work

Current approaches to GraphQL cost analysis fall short:

• Dynamic Analysis: Executes queries or probes the backend. Accurate but prohibitively expensive for real-time request filtering (e.g., Hartig & Pérez, 2018).
• Existing Static Analysis: Often simplistic (e.g., counting query nodes). They fail to account for common GraphQL conventions like list sizes, query arguments, and interface/union types, leading to both over- and under-estimates (e.g., GraphQL Complexity libraries).

This work positions itself as the first to provide a provably correct static analysis that is both linear in complexity and configurable to real-world schema conventions.

3. Formalization of GraphQL Semantics

The foundation of the analysis is a novel, rigorous formalization of GraphQL's execution semantics. This formal model precisely defines:

• The structure of queries and schemas.
• The resolution of fields, including nested objects and lists.
• The impact of query arguments (e.g., `first`, `limit`) on result size.

This formalism moves beyond the GraphQL specification's prose, enabling mathematical reasoning about query execution paths and their associated costs. It treats a GraphQL schema as a directed graph of types, where fields are edges.

4. GraphQL Query Complexity Measures

The paper defines two primary cost metrics, reflecting different stakeholder concerns:

1. Server Cost ($C_s$): Models the work performed by the resolver functions. It is a function of the query depth, breadth, and estimated list sizes. Formally, it can be expressed as a sum over query paths: $C_s(Q) = \sum_{p \in Paths(Q)} \prod_{f \in p} weight(f)$, where $weight(f)$ estimates the cardinality of field $f$.
2. Response Size ($C_r$): Models the volume of data in the JSON response, directly impacting network transfer. It is closely related to the number of nodes in the response tree.

These metrics are parameterized by a simple configuration provided by the API developer (e.g., default list size = 10, max depth = 7).

5. Linear-Time Static Cost Analysis

The core technical contribution is an algorithm that computes an upper bound for $C_s$ and $C_r$ in O(n) time and space, where n is the size of the query document (AST nodes).

Algorithm Sketch:

1. Parse & Validate: The query is parsed into an AST and validated against the schema.
2. Annotate AST: Each node in the AST is annotated with cost variables based on its type (object, list, scalar) and configured weights.
3. Propagate Costs: A single bottom-up traversal propagates cost estimates from leaf nodes to the root, applying multiplication for nested lists and summation for sibling fields.
4. Extract Bound: The root node's annotation contains the final cost upper bound.

The analysis correctly handles GraphQL features like fragments, variables, and inline arguments, integrating them into the cost calculation.

6. Evaluation & Results

The analysis was evaluated on a novel corpus of 10,000 real query-response pairs from two commercial GraphQL APIs (GitHub and a private enterprise API).

Chart Interpretation (Conceptual): A scatter plot would show a strong, positive linear correlation between the Calculated Upper Bound (x-axis) and the Actual Response Size/Time (y-axis) for the proposed method, with points clustered near a y=x line. Points for the naive method would be widely scattered, far from this line.

7. Analysis Framework Example

Scenario: A blog API with a query to get posts and their comments.

Schema Configuration:

type Query {
  posts(limit: Int = 10): [Post!]!  # weight = 'limit' argument
}
type Post {
  title: String!
  comments(limit: Int = 5): [Comment!]! # weight = 'limit' argument
}
type Comment { text: String! }

Query:

query {
  posts(limit: 2) {
    title
    comments(limit: 3) {
      text
    }
  }
}

Cost Calculation (Manual):

• Root `posts` list size: 2 (from `limit` argument).
• For each `Post`, the nested `comments` list size: 3.
• Server Cost ($C_s$) Upper Bound: $2 \times (1_{title} + 3 \times 1_{text}) = 2 \times 4 = 8$ resolver calls.
• Response Size ($C_r$) Upper Bound: $2_{posts} \times (1_{title} + 3_{comments}) = 8$ JSON objects.

The analysis traverses the query once, applying these multiplicative rules, arriving at the bound of 8.

8. Future Applications & Directions

The principled cost analysis opens several avenues:

• Adaptive Rate Limiting & Pricing: Move from request-count-based to cost-based pricing models (like AWS CloudWatch Logs Insights), where clients pay for computational complexity, not just API calls.
• Query Optimization & Planning: Integrate with database query planners (e.g., PostgreSQL, MongoDB) for GraphQL, similar to how SQL optimizers use cost estimation, as explored in projects like Hasura.
• Proactive Schema Design: Tools to audit GraphQL schemas during development for DoS vulnerabilities, recommending pagination limits or depth restrictions, akin to ESLint rules for security.
• Federated GraphQL Cost Analysis: Extend the model to estimate costs in a federated architecture (Apollo Federation), where queries span multiple subgraphs, a significant challenge noted by Apollo's engineering team.
• Machine Learning Integration: Use historical query/response data to learn and refine the `weight` parameters for fields automatically, moving from static configuration to dynamic, data-driven cost models.

9. References

1. Hartig, O., & Pérez, J. (2018). Semantics and Complexity of GraphQL. Proceedings of the World Wide Web Conference (WWW).
2. Facebook. (2021). GraphQL Specification. https://spec.graphql.org/
3. Wittern, E., Cha, A., Davis, J. C., et al. (2019). An Empirical Study of GraphQL Schemas and Their Security Implications. ICSE SEIP.
4. GraphQL Foundation. (2022). GraphQL Complexity Analysis Tools.
5. GitHub. (2023). GitHub GraphQL API Documentation. https://docs.github.com/en/graphql
6. Isola, P., Zhu, J., Zhou, T., & Efros, A. A. (2017). Image-to-Image Translation with Conditional Adversarial Networks (CycleGAN). CVPR.
