An Empirical Study on Database Usage in Microservices: Patterns, Trends, and Recommendations

Analysis of database usage patterns in microservices architectures based on an empirical study of 1,000 GitHub projects over 15 years.
apismarket.org | PDF Size: 1.8 MB
Rating: 4.5/5
★ ★ ★ ★ ★
Your Rating
You have already rated this document

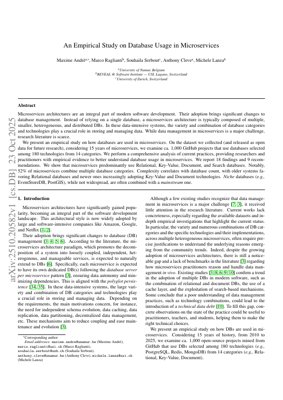

PDF Document Cover - An Empirical Study on Database Usage in Microservices: Patterns, Trends, and Recommendations
View PDF Document Download PDF Translate PDF
Home » Documentation » An Empirical Study on Database Usage in Microservices: Patterns, Trends, and Recommendations

1. Introduction & Overview

This empirical study investigates database usage patterns within microservices architectures, analyzing approximately 1,000 open-source GitHub projects spanning 15 years (2010-2025). The research examines 180 database technologies across 14 categories to understand current practices, trends, and challenges in data management for microservices.

The study addresses a significant gap in literature regarding concrete, data-driven insights into how polyglot persistence is implemented in real-world microservices systems, moving beyond theoretical discussions to empirical evidence.

2. Research Methodology

The study employs a systematic empirical approach to collect and analyze data from GitHub repositories implementing microservices architectures.

2.1 Dataset Collection

The dataset includes:

  • 1,000 GitHub projects identified as microservices architectures
  • 180 database technologies from 14 categories (Relational, Key-Value, Document, Search, etc.)
  • 15-year timeframe (2010-2025) to track evolution
  • Open data released for future research

2.2 Analysis Framework

The analysis framework includes:

  • Technology adoption patterns
  • Database combination frequencies
  • Temporal evolution analysis
  • Complexity correlation studies
  • Statistical significance testing

3. Key Findings & Statistical Analysis

52%

of microservices combine multiple database categories

4 Main Categories

Relational, Key-Value, Document, and Search databases dominate

180 Technologies

analyzed across 14 database categories

3.1 Database Category Prevalence

The study reveals that microservices predominantly use four main database categories:

  1. Relational Databases: Traditional SQL databases remain widely used
  2. Key-Value Stores: Particularly for caching and session management
  3. Document Databases: For flexible schema requirements
  4. Search Databases: For full-text search capabilities

3.2 Polyglot Persistence Trends

A significant finding is that 52% of microservices combine multiple database categories, demonstrating widespread adoption of polyglot persistence. This aligns with the microservices principle of using the right tool for each specific service's data requirements.

3.3 Technology Evolution Over Time

The study identifies clear evolutionary patterns:

  • Older systems (pre-2015) predominantly use Relational databases
  • Newer systems increasingly adopt Key-Value and Document technologies
  • Niche databases (e.g., EventStoreDB, PostGIS) are often combined with mainstream ones
  • Complexity correlates positively with the number of database technologies used

4. Technical Insights & Recommendations

4.1 Core Recommendations for Practitioners

Based on 18 findings, the study provides 9 actionable recommendations:

  1. Start with a single database category and expand based on specific needs
  2. Implement clear data governance policies for polyglot persistence
  3. Monitor complexity as database count increases
  4. Consider team expertise when selecting database technologies
  5. Plan for data migration and integration challenges

4.2 Mathematical Model for Complexity

The study suggests that system complexity ($C$) can be modeled as a function of the number of database technologies ($n$) and their integration patterns:

$C = \alpha \cdot n + \beta \cdot \sum_{i=1}^{n} \sum_{j=i+1}^{n} I_{ij} + \gamma \cdot E$

Where:

  • $\alpha$ = base complexity per database
  • $\beta$ = integration complexity coefficient
  • $I_{ij}$ = integration difficulty between databases i and j
  • $\gamma$ = team expertise factor
  • $E$ = team experience level

This model helps predict how adding database technologies affects overall system maintainability.

5. Experimental Results & Charts

The experimental analysis reveals several key patterns visualized through multiple charts:

Database Category Distribution

A pie chart showing the percentage distribution of database categories across all studied projects reveals that Relational databases account for approximately 45% of usage, followed by Key-Value (25%), Document (20%), and Search (10%) databases.

Temporal Evolution Chart

A line chart tracking database adoption from 2010 to 2025 shows a clear trend: while Relational databases maintain steady usage, Key-Value and Document databases show significant growth, particularly after 2018. Search databases show moderate but consistent growth.

Polyglot Persistence Combinations

A network diagram illustrates common database combinations, with the most frequent being Relational + Key-Value (30% of polyglot systems), followed by Relational + Document (25%), and Key-Value + Document (20%).

Complexity vs. Database Count

A scatter plot demonstrates a positive correlation ($r = 0.68$) between the number of database technologies used and measures of system complexity (e.g., lines of code, number of services, issue frequency).

6. Analysis Framework & Case Example

Analysis Framework for Database Selection:

The study proposes a decision framework for database selection in microservices:

  1. Requirement Analysis: Identify specific data needs (consistency, latency, volume)
  2. Technology Evaluation: Match requirements to database categories
  3. Integration Assessment: Evaluate integration complexity with existing systems
  4. Team Capability Review: Assess team expertise with candidate technologies
  5. Long-term Maintenance Consideration: Project 5-year maintenance costs

Case Example: E-commerce Platform

An e-commerce microservices platform might use:

  • PostgreSQL (Relational): For order management and user accounts (ACID compliance needed)
  • Redis (Key-Value): For shopping cart and session management (low latency needed)
  • MongoDB (Document): For product catalogs (flexible schema needed)
  • Elasticsearch (Search): For product search functionality

This combination exemplifies polyglot persistence, where each database serves specific, optimized purposes.

7. Future Applications & Research Directions

Future Applications:

  • AI-Driven Database Selection: Machine learning models that recommend optimal database combinations based on system requirements
  • Automated Migration Tools: Tools that facilitate seamless database technology transitions
  • Complexity Prediction Systems: Systems that predict maintenance overhead based on database architecture choices
  • Educational Platforms: Training systems that teach optimal polyglot persistence patterns

Research Directions:

  1. Longitudinal studies tracking database evolution in individual projects
  2. Comparative analysis of polyglot persistence success factors
  3. Development of standardized metrics for database integration complexity
  4. Investigation of database technology lifecycle in microservices
  5. Studies on the impact of serverless architectures on database patterns

8. References

  1. Fowler, M., & Lewis, J. (2014). Microservices. ThoughtWorks.
  2. Newman, S. (2015). Building Microservices. O'Reilly Media.
  3. Richardson, C. (2018). Microservices Patterns. Manning Publications.
  4. Pritchett, D. (2008). BASE: An ACID Alternative. ACM Queue.
  5. Kleppmann, M. (2017). Designing Data-Intensive Applications. O'Reilly Media.
  6. Google Cloud Architecture Center. (2023). Database Selection Guide.
  7. Amazon Web Services. (2023). Microservices Data Management Patterns.
  8. Microsoft Research. (2022). Polyglot Persistence in Enterprise Systems.
  9. ACM Digital Library. (2023). Empirical Studies in Software Architecture.
  10. IEEE Software. (2023). Database Trends in Distributed Systems.

9. Original Analysis & Expert Commentary

Core Insight

The study's most compelling revelation isn't that polyglot persistence exists—we knew that—but that 52% of microservices are already architecturally committed to this complexity. This isn't gradual adoption; it's a paradigm shift that's already happened. The industry has moved from debating "whether" to manage the "how" of multiple databases, yet our tooling and education lag dangerously behind. This creates what the authors rightly identify as "technical data debt," but I'd argue it's more systemic: we're building distributed data systems with monolith-era mental models.

Logical Flow

The research follows a solid empirical chain: massive dataset collection → categorical analysis → temporal tracking → correlation discovery. The logical leap from "52% use multiple databases" to "complexity correlates with database count" is where the real value emerges. However, the study stops short of proving causation—does complexity drive polyglot adoption, or does polyglot adoption create perceived complexity? The temporal data suggesting newer systems favor Key-Value and Document stores aligns with the industry's shift toward event-driven architectures and real-time processing, as documented in the Designing Data-Intensive Applications paradigm (Kleppmann, 2017).

Strengths & Flaws

Strengths: The 15-year timeframe provides rare longitudinal insight. The open dataset is a significant contribution to reproducible research. The focus on GitHub projects captures real-world practice rather than theoretical ideals.

Critical Flaws: The study's Achilles' heel is its blindness to failure cases. We see successful projects but not the graveyard of systems that collapsed under polyglot complexity. This survivorship bias skews recommendations. Additionally, while the ACM Digital Library and IEEE databases show similar trends in enterprise systems, this study lacks the operational metrics (uptime, latency, maintenance costs) that would transform correlation into actionable insight.

Actionable Insights

First, treat database selection as a first-class architectural decision, not an implementation detail. The mathematical complexity model proposed, while simplistic, provides a starting point for quantifying trade-offs. Second, invest in data governance before polyglot persistence—the study shows niche databases often pair with mainstream ones, suggesting teams use familiar anchors when experimenting. Third, challenge the "database per service" dogma when data relationships exist; sometimes shared databases with clear boundaries beat integration nightmares. Finally, this research should trigger investment in polyglot-aware tooling—our current DevOps pipelines assume database homogeneity, creating the very complexity the architecture seeks to avoid.

The microservices community stands at an inflection point similar to the object-relational mapping debates of the early 2000s. We can either develop sophisticated patterns for managing distributed data complexity or watch as "microservices" become synonymous with "unmaintainable data spaghetti." This study provides the evidence; now we need the engineering discipline.
