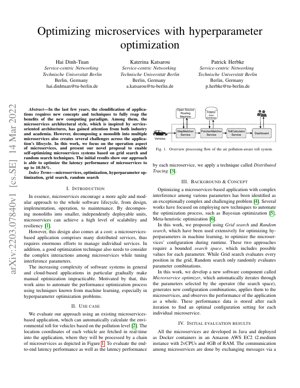

Optimizing Microservices Performance with Hyperparameter Optimization Techniques

1. Introduction & Overview

This work addresses a critical challenge in modern cloud-native application development: the operational complexity of microservices architectures. While microservices offer benefits in scalability and agility, they introduce significant management overhead, particularly in performance optimization. The paper proposes a novel approach to automate this optimization by adapting hyperparameter optimization (HPO) techniques—specifically Grid Search and Random Search—from machine learning to the domain of microservices configuration tuning. The goal is to enable self-optimizing systems that can dynamically adjust runtime parameters to improve end-to-end performance metrics like latency.

2. Core Methodology & Architecture

2.1 Use Case: Air Pollution-Aware Toll System

The proposed methodology is evaluated using a concrete microservices-based application: an air pollution-aware toll calculation system. The application processes real-time vehicle location data through a chain of three core microservices:

1. MapMatcher Service: Matches raw GPS coordinates to road networks.
2. PollutionMatcher Service: Correlates vehicle location with pollution data from a database.
3. TollCalculator Service: Computes the environmental toll based on pollution levels.

Performance is measured using Distributed Tracing to capture end-to-end and per-service latency.

2.2 Background: Hyperparameter Optimization for Microservices

The paper frames microservices performance tuning as a search problem within a bounded configuration space. Each microservice has tunable parameters (e.g., thread pool size, cache size, connection limits). The combination of these parameters across all services defines a high-dimensional search space. The objective is to find the configuration that minimizes a target metric (e.g., average latency). The work contrasts its chosen methods (Grid Search, Random Search) with other HPO techniques like Bayesian Optimization [5] and Meta-heuristic approaches [6], arguing for the simplicity and explicability of the former in early-stage automation.

2.3 Proposed Architecture & Microservice Optimizer

The central innovation is the Microservice Optimizer, a new software component. Its architecture (conceptualized in Figure 2 of the PDF) involves:

• Search Space Definition: The operator defines the bounded set of possible values for each tunable parameter.
• Search Execution: The optimizer iteratively generates new configuration combinations:
  • Grid Search: Exhaustively evaluates all points in a discretized grid of the parameter space.
  • Random Search: Randomly samples configurations from the defined space.
• Configuration Application & Evaluation: The new configuration is deployed to the microservices. The system's performance (latency) is observed and recorded.
• Result Aggregation: Performance data from each iteration is stored to identify the optimal configuration.

Communication between the optimizer, microservices, and a monitoring dashboard is facilitated via a message broker (NATS) and a web server.

3. Technical Implementation & Evaluation

3.1 Experimental Setup & Environment

The evaluation environment was set up on Amazon AWS using an EC2 t2.medium instance (2 vCPUs, 4GB RAM). All microservices were implemented in Java and deployed as Docker containers. Inter-service communication was handled asynchronously via a NATS message broker. This setup mimics a realistic, resource-constrained cloud deployment.

3.2 Initial Evaluation Results & Performance Gains

The initial results demonstrate the feasibility of the approach. By applying the Grid Search and Random Search techniques to tune microservice configurations at runtime, the system achieved a reduction in end-to-end latency of up to 10.56% compared to a non-optimized baseline configuration. The results, presented in a bar chart format in the PDF, show the average runtime for the total application and for individual services (Pollution Matcher, Map Matcher, Toll Calculator) across different tested configurations, clearly indicating performance improvements for specific parameter sets.

4. Analysis & Expert Interpretation

4.1 Core Insight

The paper's fundamental insight is both powerful and glaringly obvious in hindsight: treat microservices configuration like a machine learning hyperparameter problem. By abstracting away the specific semantics of thread counts or memory limits and viewing them merely as knobs in a multi-dimensional space, the authors unlock a suite of well-studied optimization algorithms. This is a classic lateral thinking move, reminiscent of how researchers applied Generative Adversarial Networks (GANs) to unpaired image-to-image translation in the seminal CycleGAN paper, repurposing an adversarial framework for a new domain. The value here isn't in inventing a new search algorithm, but in the framing of the problem.

4.2 Logical Flow

The logic is sound but reveals its academic prototype nature. It follows a clean, linear pipeline: 1) Define a search space (operator input), 2) Deploy an optimizer (Grid/Random Search), 3) Iterate, apply, measure, 4) Select the best configuration. However, this flow assumes a static workload and a controlled lab environment. The critical missing link is feedback latency and convergence time. In a real production system, the workload pattern changes constantly. How many "bad" configurations must be tried (and potentially degrade user experience) before finding a good one? The paper's evaluation, while positive, doesn't sufficiently stress-test this loop under dynamic conditions.

4.3 Strengths & Flaws

Strengths:

• Conceptual Elegance: The mapping from HPO to config tuning is brilliant in its simplicity.
• Implementational Simplicity: Grid and Random Search are easy to understand, debug, and explain to operations teams, avoiding the "black box" stigma of Bayesian Optimization.
• Proven Foundation: It builds on decades of HPO research from ML, as documented in resources like the Automated Machine Learning book (Feurer et al.) or the scikit-optimize library.
• Tangible Results: A 10.56% improvement is non-trivial, especially for latency-sensitive applications.

Flaws & Critical Gaps:

• Brute-Force Core: Grid Search is notoriously inefficient in high-dimensional spaces ("the curse of dimensionality"). This approach doesn't scale well beyond a handful of tuned parameters per service.
• Cost-Ignorant: The search optimizes purely for latency. It does not consider the resource cost (CPU, memory, $) of a configuration. A configuration that is 5% faster but uses 50% more CPU might be economically unviable.
• No Transfer Learning: Each application deployment seemingly starts its search from scratch. There's no mechanism to leverage knowledge from optimizing similar microservices in other applications, a direction explored in meta-learning for HPO.
• Safety Mechanisms Absent: The paper doesn't discuss guardrails to prevent the deployment of catastrophically bad configurations that could crash a service or cause a cascade failure.

4.4 Actionable Insights

For engineering leaders, this research is a compelling proof-of-concept but not a production-ready blueprint. Here's how to act on it:

1. Start with Random Search, not Grid Search. As Bergstra and Bengio's 2012 paper "Random Search for Hyper-Parameter Optimization" famously showed, Random Search is often more efficient than Grid Search for the same computational budget. Implement this first.
2. Build a Cost-Aware Objective Function. Don't just minimize latency. Minimize a weighted function like $\text{Objective} = \alpha \cdot \text{Latency} + \beta \cdot \text{ResourceCost}$. This aligns technical performance with business metrics.
3. Implement a "Canary Search" Pattern. Before applying a new configuration to all instances, deploy it to a single canary instance and A/B test its performance against the baseline under live traffic. This mitigates risk.
4. Invest in a Configuration Knowledge Base. Log every tried configuration and its result. This creates a dataset for future, more sophisticated optimizers (e.g., Bayesian models) that can learn from history and warm-start searches.
5. Focus on High-Leverage Parameters First. Apply this method to the 2-3 parameters per service known to have the largest performance impact (e.g., database connection pool size, JVM heap settings). Avoid boiling the ocean.

5. Technical Details & Mathematical Formulation

The optimization problem can be formally defined. Let a microservices application consist of $n$ services. For each service $i$, there is a set of $m_i$ tunable parameters. Let $\theta_i^{(j)}$ represent the $j$-th parameter of service $i$, which can take values from a finite set $V_i^{(j)}$ (for categorical) or a bounded interval $[a_i^{(j)}, b_i^{(j)}]$ (for numerical).

The joint configuration space $\Theta$ is the Cartesian product of all parameter value sets:

$\Theta = V_1^{(1)} \times ... \times V_1^{(m_1)} \times ... \times V_n^{(1)} \times ... \times V_n^{(m_n)}$

Let $L(\theta)$ be the observed end-to-end latency of the application when configuration $\theta \in \Theta$ is deployed. The goal is to find:

$\theta^* = \arg\min_{\theta \in \Theta} L(\theta)$

Grid Search operates by discretizing continuous intervals into a set of values, creating a full grid over $\Theta$, and evaluating $L(\theta)$ for every grid point.

Random Search samples $N$ configurations $\{\theta_1, \theta_2, ..., \theta_N\}$ uniformly at random from $\Theta$ (or from the defined value sets) and evaluates $L(\theta)$ for each sample, selecting the best.

6. Analysis Framework & Example Case

Example: Optimizing a Payment Processing Microservice

Consider a "PaymentService" in an e-commerce application. An operator identifies three key tunable parameters with suspected impact on latency under load:

1. Database Connection Pool Size (dbc_conns): Integer between 5 and 50.
2. HTTP Server Worker Threads (http_threads): Integer between 10 and 100.
3. In-Memory Cache Size (cache_mb): Integer between 128 and 1024 (MB).

Search Space Definition:
The operator defines the search space for the Microservice Optimizer:
PaymentService: { dbc_conns: [5, 10, 20, 30, 40, 50], http_threads: [10, 25, 50, 75, 100], cache_mb: [128, 256, 512, 1024] }

Optimization Execution:
- Grid Search: Would test all 6 * 5 * 4 = 120 possible combinations.
- Random Search: Might sample 30 random combinations from this space (e.g., (dbc_conns=20, http_threads=75, cache_mb=256), (dbc_conns=40, http_threads=25, cache_mb=512), etc.).

Outcome: The optimizer might discover that a configuration of {dbc_conns: 30, http_threads: 50, cache_mb: 512} yields a 12% lower 95th percentile latency for the PaymentService compared to the default {dbc_conns: 10, http_threads: 25, cache_mb: 128}, without a significant increase in memory footprint. This configuration is then stored as optimal for the observed workload pattern.

7. Future Applications & Research Directions

The trajectory from this foundational work points to several compelling future directions:

• Multi-Objective & Constrained Optimization: Extending the search to balance latency, throughput, cost ($), and reliability (error rate) simultaneously, possibly using Pareto-frontier methods.
• Bayesian Optimization Integration: Replacing Grid/Random Search with more sample-efficient Bayesian Optimization (BO) using Gaussian Processes. BO can model the performance landscape and intelligently select the most promising configurations to test next.
• Meta-Learning for Warm Starts: Developing a system that, given a new microservice, can recommend a starting configuration and search space based on learned patterns from thousands of previously optimized services (e.g., "services using PostgreSQL with high write rates tend to be optimal with connection pools between 20-40").
• Reinforcement Learning (RL) for Dynamic Adaptation: Moving beyond one-off optimization to continuous adaptation. An RL agent could learn a policy to adjust configurations in real-time based on changing traffic patterns, similar to how Google's Vizier service operates but tailored for microservices orchestration platforms like Kubernetes.
• Integration with Service Meshes: Embedding the optimizer within a service mesh (e.g., Istio, Linkerd). The mesh already controls traffic and observes metrics, making it the ideal platform to implement and deploy configuration changes safely via canary releases or gradual rollouts.

8. References

1. Newman, S. (2015). Building Microservices. O'Reilly Media. (Cited for microservices benefits).
2. Dinh-Tuan, H., et al. (2022). Air Pollution-Aware Toll System. [Reference to the specific use case application].
3. OpenTelemetry Project. (2021). Distributed Tracing Specification. https://opentelemetry.io
4. Zhu, L., et al. (2017). Optimizing Microservices in the Cloud: A Survey. IEEE Transactions on Cloud Computing.
5. Snoek, J., Larochelle, H., & Adams, R. P. (2012). Practical Bayesian Optimization of Machine Learning Algorithms. Advances in Neural Information Processing Systems (NeurIPS).
6. Barrera, J., et al. (2020). A Meta-heuristic Approach for Configuration Tuning of Cloud Systems. IEEE Transactions on Services Computing.
7. Bergstra, J., & Bengio, Y. (2012). Random Search for Hyper-Parameter Optimization. Journal of Machine Learning Research.
8. Feurer, M., & Hutter, F. (2019). Hyperparameter Optimization. In Automated Machine Learning (pp. 3-33). Springer.
9. Zhu, J., Park, T., Isola, P., & Efros, A. A. (2017). Unpaired Image-to-Image Translation using Cycle-Consistent Adversarial Networks. IEEE International Conference on Computer Vision (ICCV). (CycleGAN reference for lateral thinking analogy).
10. Golovin, D., et al. (2017). Google Vizier: A Service for Black-Box Optimization. Proceedings of the 23rd ACM SIGKDD International Conference on Knowledge Discovery and Data Mining.
