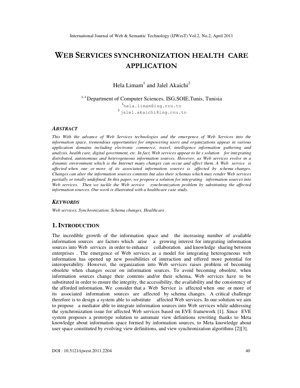

Web Services Synchronization in Dynamic Environments: A Schema Change Management Approach

Table of Contents

1. Introduction

The proliferation of Web Services as a standard for integrating heterogeneous, distributed information sources has created significant challenges in maintaining service integrity and availability. In dynamic environments like the Internet, underlying data sources are autonomous and subject to schema evolution. This paper addresses the critical problem of Web Service obsolescence when associated information sources undergo schema changes, proposing a synchronization framework to ensure continuous service operation.

2. Related Works

Previous research has highlighted the impact of schema changes on view definitions and data integration systems. Approaches range from manual view redefinition to automated schema mapping and evolution techniques. The authors position their work within the context of the EVE framework, which provides mechanisms for automated view rewriting and synchronization using meta-knowledge.

3. Web Service Model for Information Source Integration

The proposed model treats a Web Service as a composition of views over multiple, potentially heterogeneous information sources. A Web Service $WS_i$ is defined as a tuple: $WS_i = (V_1, V_2, ..., V_n, IS_1, IS_2, ..., IS_m)$, where $V_j$ are view definitions and $IS_k$ are the underlying information sources. The service is considered affected when $\exists IS_k$ such that $Schema(IS_k)$ changes, rendering some $V_j$ undefined or inconsistent.

4. Web Services Synchronization Solution

The core of the solution is a mediator-based middleware architecture designed to detect schema changes and automatically substitute affected Web Services.

4.1. Web Services Meta Knowledge Base (WSMKB)

The WSMKB stores metadata about available Web Services, information sources, and substitution constraints. It maintains relationships like dependsOn(WS_i, IS_k) and compatibility rules canSubstitute(WS_a, WS_b) based on functional and semantic equivalence.

4.2. Web Services View Knowledge Base (WSVKB)

The WSVKB contains the actual view definitions that constitute each Web Service. It maps the logical service interface to the physical queries over information sources. This separation allows the system to reason about the impact of a schema change on a specific view $V_j$ without affecting the service's public contract initially.

4.3. Web Services Synchronization Algorithm (AS²W)

The AS²W (Algorithm for Substituting Synchronized Web Services) is triggered upon detection of a schema change notification. It consults the WSMKB to identify all Web Services dependent on the changed source, uses the WSVKB to assess the impact on view definitions, and executes a substitution plan based on predefined constraints.

4.4. Healthcare Application Case Study

The framework is illustrated with a healthcare scenario. Consider a Patient Medication History Web Service that aggregates data from a hospital's internal pharmacy database (IS_Pharma) and an external insurance formulary API (IS_Insurer). If the insurer changes its API schema (e.g., renames field drugName to medicationName), the AS²W algorithm would identify the affected view, search the WSMKB for a compatible alternative service or a transformed view definition, and perform the substitution to maintain uninterrupted service for healthcare providers.

5. The AS²W Synchronization Algorithm

The algorithm operates in three phases: 1) Impact Analysis: Determines the set of affected Web Services $A_{WS}$ and views $A_V$. 2) Candidate Identification: Queries the WSMKB for potential substitute services $S_{cand}$ that satisfy the functional and non-functional constraints of the original service. 3) Substitution Execution: Selects the optimal candidate $WS_{opt} \in S_{cand}$, rewrites the client bindings if necessary, and updates the WSVKB.

A simplified cost function for selection could be: $Cost(WS_{cand}) = \alpha \cdot SemanticDist(WS_{orig}, WS_{cand}) + \beta \cdot PerfOverhead(WS_{cand})$, where $\alpha$ and $\beta$ are weighting factors.

6. Conclusion and Future Work

The paper presents a proactive approach to maintaining Web Service vitality in the face of schema evolution. By leveraging meta-knowledge and a substitution-based synchronization algorithm, the system enhances reliability. Future work includes extending the algorithm to handle composite service workflows, incorporating machine learning for better substitute prediction, and addressing security and transactional consistency during substitution.

7. Core Analysis & Expert Insights

Core Insight: Limam and Akaichi's work is a prescient, albeit niche, attempt to treat Web Service reliability not as a static deployment issue but as a continuous runtime adaptation challenge. Their core insight is that in a federated data ecosystem, the failure point is often the schema contract, not the network or server. This aligns with modern microservices and API governance philosophies, where change management is paramount.

Logical Flow: The logic is sound but reveals its 2011 vintage. The dependency chain is clear: Schema Change → Impacted View → Affected Service → Substitution. The reliance on a centralized meta-knowledge base (WSMKB/WSVKB) is both its strength for coherence and its Achilles' heel for scalability and single-point-of-failure concerns, a trade-off well-documented in systems like Google's Borg cluster manager, which centralizes scheduling but requires immense robustness.

Strengths & Flaws: The major strength is the concrete formalization of the "affected service" concept and the structured substitution process. The healthcare case study effectively grounds the theory. The glaring flaw is the assumption of pre-existing, semantically annotated substitute services and perfect compatibility knowledge in the WSMKB. In practice, as noted in studies of API evolution like those by Espinha et al., finding drop-in replacements is rare; more often, adaptation layers or client-side changes are needed. The paper underestimates the complexity of semantic matching, a problem that projects like the W3C's OWL-S ontology aimed to solve but with limited real-world adoption.

Actionable Insights: For architects today, the takeaway isn't to implement this exact system, but to embrace its principle: design for schema volatility. 1) Implement robust schema versioning and backward-compatibility policies for your own APIs, as championed by companies like Stripe. 2) Use contract testing (e.g., Pact) to detect breaking changes early. 3) For consuming external services, employ the Circuit Breaker pattern (as in Netflix Hystrix) not just for downtime, but for semantic drift—failing fast when a response no longer matches the expected schema. 4) Invest in metadata catalogs, but augment them with automated discovery and lineage tools (like Amundsen or DataHub) rather than relying solely on manual registration. The future lies in AI-assisted schema mapping and change impact prediction, moving beyond the paper's rule-based substitution.

8. Technical Framework & Mathematical Model

The system's state can be modeled formally. Let $\mathbb{WS}$ be the set of all Web Services, $\mathbb{IS}$ the set of information sources, and $\mathbb{V}$ the set of views. A dependency graph $G = (\mathbb{WS} \cup \mathbb{IS}, E)$ exists where an edge $e(WS_i, IS_j) \in E$ if $WS_i$ depends on $IS_j$.

Upon a change $\Delta$ to $IS_j$, the affected service set is: $A_{WS} = \{ WS_i | e(WS_i, IS_j) \in E \}$.

The substitution function $\sigma$ finds a new service: $\sigma(WS_{aff}, \Delta, WSMKB, WSVKB) \rightarrow WS_{sub}$. The algorithm aims to minimize a disruption metric $D$: $\min_{WS_{sub}} D(WS_{aff}, WS_{sub})$, where $D$ incorporates factors like data loss, latency increase, and contractual mismatch.

9. Analysis Framework: Healthcare Scenario

Scenario: A clinical decision support system uses a DrugInteractionCheck service.

Components:

• WSMKB Entry: Service: DrugInteractionCheck; Sources: [LocalDrugDB_v2, ExternalInteractionAPI_v1]; CanSubstituteWith: [DrugSafetyService_v3]
• WSVKB Entry: View: CheckInteractions(patientId, drugList); Query: SELECT interaction_risk FROM LocalDrugDB_v2.drugs d JOIN ExternalInteractionAPI_v1.interactions i ON d.code = i.drug_code WHERE d.id IN (drugList)...

Event: ExternalInteractionAPI_v1 is deprecated, replaced by v2 with a new field standardized_drug_code replacing drug_code.

AS²W Execution:

1. Impact Analysis: Flags DrugInteractionCheck as affected.
2. Candidate Identification: Finds DrugSafetyService_v3 in WSMKB as a pre-approved substitute offering a similar checkInteractions operation.
3. Substitution Execution: Redirects service endpoints. The WSVKB view is updated to call the new service's operation. A logging entry notes the change for audit purposes.

This non-code example illustrates the flow of metadata and decision-making within the framework.

10. Future Applications & Research Directions

Applications:

• Microservices Mesh: Integrating this approach into service meshes (Istio, Linkerd) for automated failover at the API schema level.
• Data Mesh & Federated Governance: Providing synchronization capabilities for data products in a data mesh architecture, where domain-oriented data changes frequently.
• Edge Computing: Managing services in IoT environments where edge nodes have intermittent connectivity and evolving data formats.

Research Directions:

• AI-Powered Substitution: Using large language models (LLMs) to understand service semantics and generate adaptation code or mapping functions on-the-fly, moving beyond pre-registered substitutes.
• Blockchain for Metadata Integrity: Using decentralized ledgers to maintain a tamper-proof, distributed WSMKB, addressing the centralization flaw.
• Quantitative Resilience Metrics: Developing standard metrics (e.g., "Schema Change Mean Time To Recovery - SC-MTTR") to measure and benchmark synchronization systems.
• Integration with API Gateways: Embedding synchronization logic directly into API management platforms for seamless consumer-side experience.

11. References

1. Limam, H., & Akaichi, J. (2011). Synchronizing Web Services Following Information Sources Schema Changes. International Journal of Web & Semantic Technology (IJWesT), 2(2), 40-51.
2. Buneman, P., Khanna, S., & Tan, W. C. (2002). Why and Where: A Characterization of Data Provenance. ICDT.
3. Bernstein, P. A., & Melnik, S. (2007). Model management 2.0: manipulating richer mappings. Proceedings of the 2007 ACM SIGMOD international conference on Management of data.
4. Espinha, T., Zaidman, A., & Gross, H. G. (2015). Web API growing pains: Loosely coupled yet strongly tied. Journal of Systems and Software, 100, 27-43.
5. Verma, A., Pedrosa, L., Korupolu, M., Oppenheimer, D., Tune, E., & Wilkes, J. (2015). Large-scale cluster management at Google with Borg. Proceedings of the Tenth European Conference on Computer Systems.
6. World Wide Web Consortium (W3C). (2004). OWL-S: Semantic Markup for Web Services. https://www.w3.org/Submission/OWL-S/
